Baunach article master data Version: 10.05.24

BAFA funding opportunity as part of heating system optimisation through hydraulic balancing and installation of separate control technology

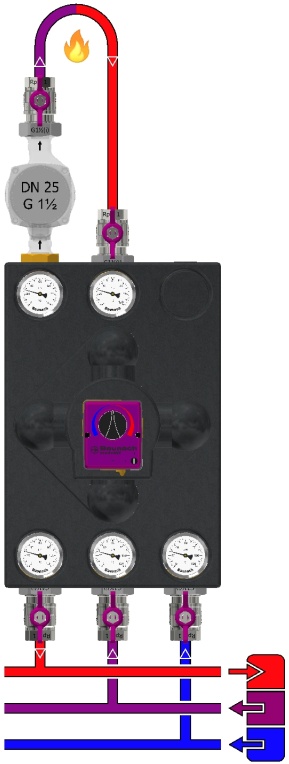

rendeMIX multi-port mixing manifold with 3/3-way tangential mixing valve DN25×G1½(a) MsGuss (adapter green), plug and cover Ms58

For highly efficient two-zone charging of a buffer storage tank by a heat generator with return temperature increase as a mixing circuit

Actuator EMS 240, 230V~ 50Hz 3.5VA 3-point signal, 5Nm (240h), 240°, 93s

Return lift mixer group with 2 connections to the heat generator and 3 connections to the buffer tank, CuØ35×1, DN32×G1½(a) flat, pipe spacing 100mm.

1 integrated gravity brake/backflow preventer, Dp10mbar

Generator circuit (HT-RLA): Kvs = 6.2 - V'max[250mbar] = 3.1m³/h - Q'max[20K] = 72kW - Q'max[10K] = 36kW - Leakage rate < 0,1%

5 Thermometers 0-120°C, Ø63mm, soldering sleeves Ms58

5 Ball valve screw connections, DN25, PN32, G1½(i)×Rp1 flat-sealing, stuffing box, sealing hole, spindle with aluminium wing handle

Insulating moulded tray EPP 40g/l, black, 300×450mm, quick assembly kit

With pump flange G1½(i) for pump DN25 on mixed heat generator return (5)

Assembly does NOT include pump compensator - PAS L180 (Part No.: 001 338)

Assembly does not contain a pump

Model DN 25 - light version, PN 10bar, Tmax 120°C
